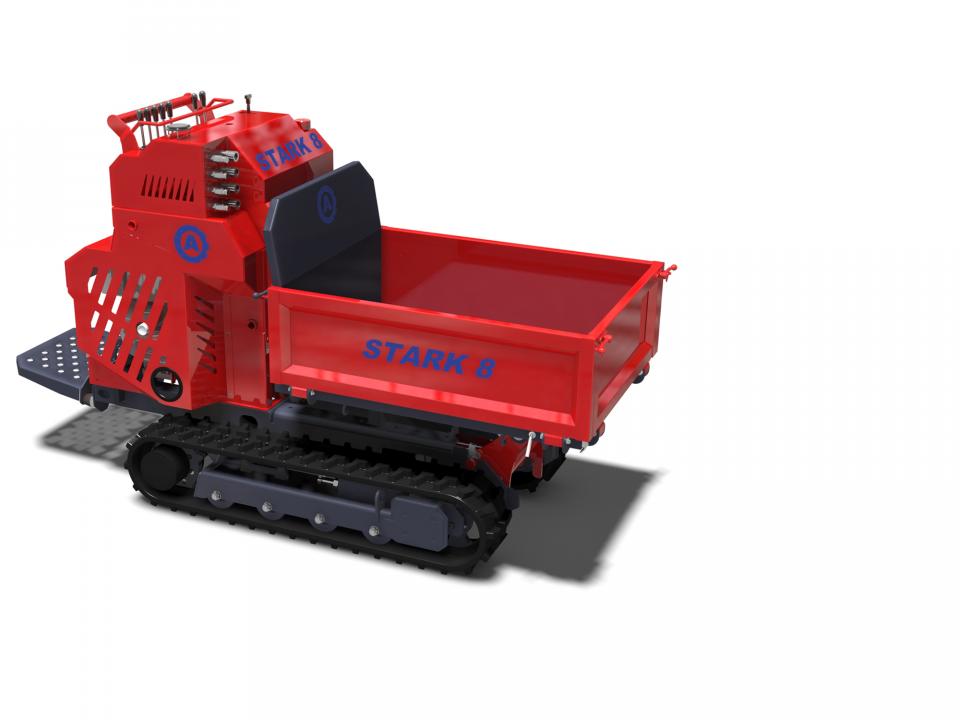

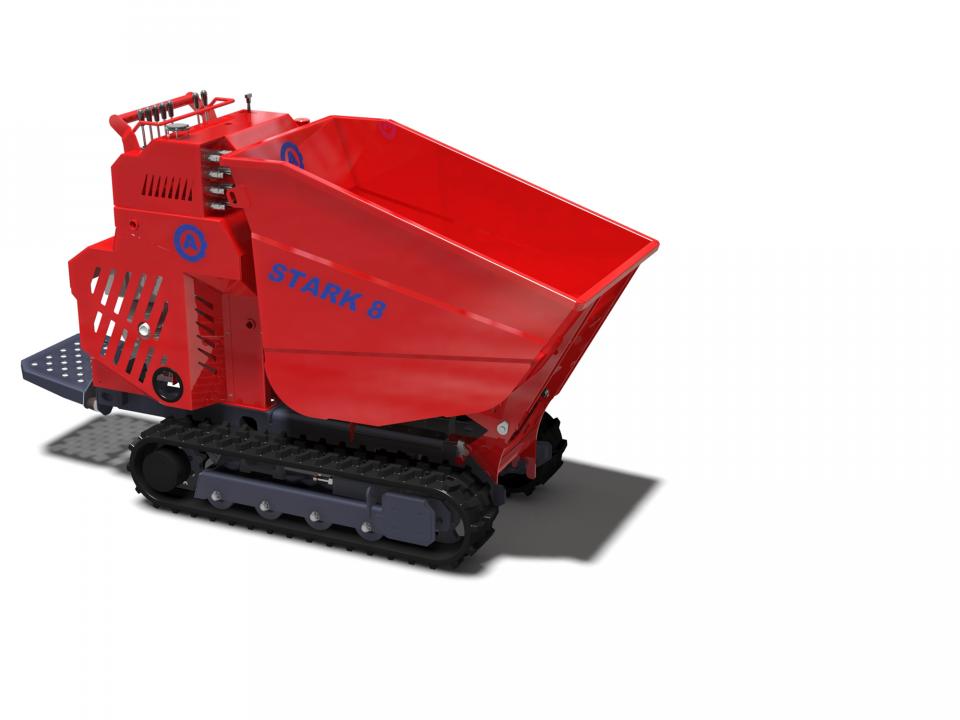

Tracked Dumper Stark 8
Objective:
to increase the work force and boost the business of those who use it every day, providing assistance for all kinds of work demands.
A multi-function tracked transporter, Stark 8 was conceived to set a new standard in the minidumper industry. A versatile and technological tool, it aims to meet all job requirements to the fullest.
With two different carriage widths, gas-powered motors, more space for the load, configurability, and management costs reduced to a minimum, Stark8 has the characteristics of a leader, simply making it the best in its category all-around.
Stark 8's strengths are:
- Impressive performance and low management costs
- Base with fixed or extendable tracks to gain greater stability under any conditions and optimal weight distribution

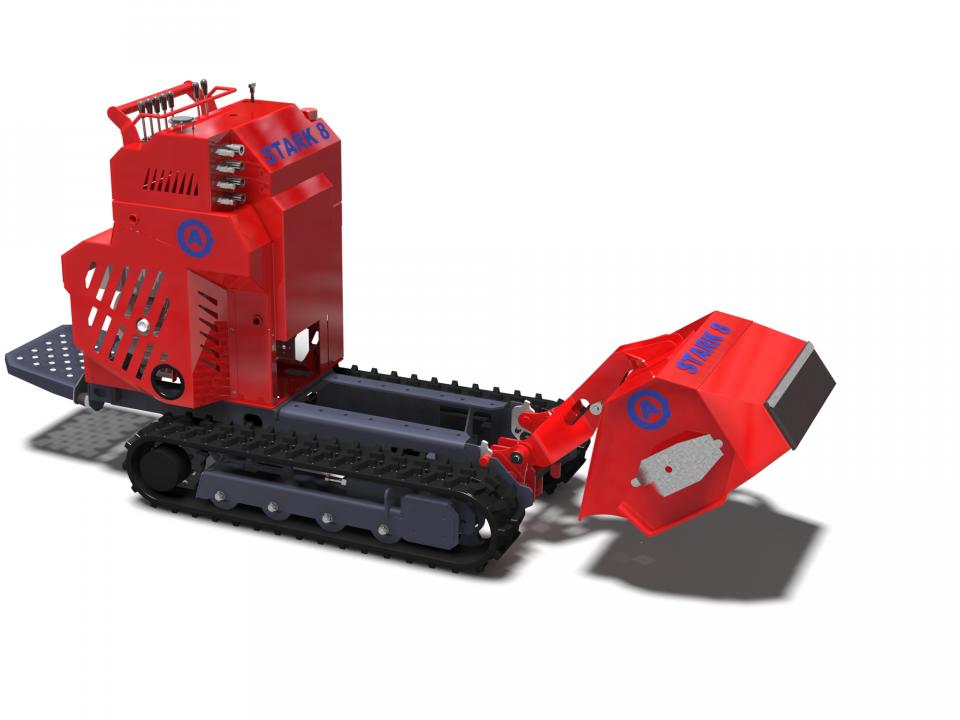

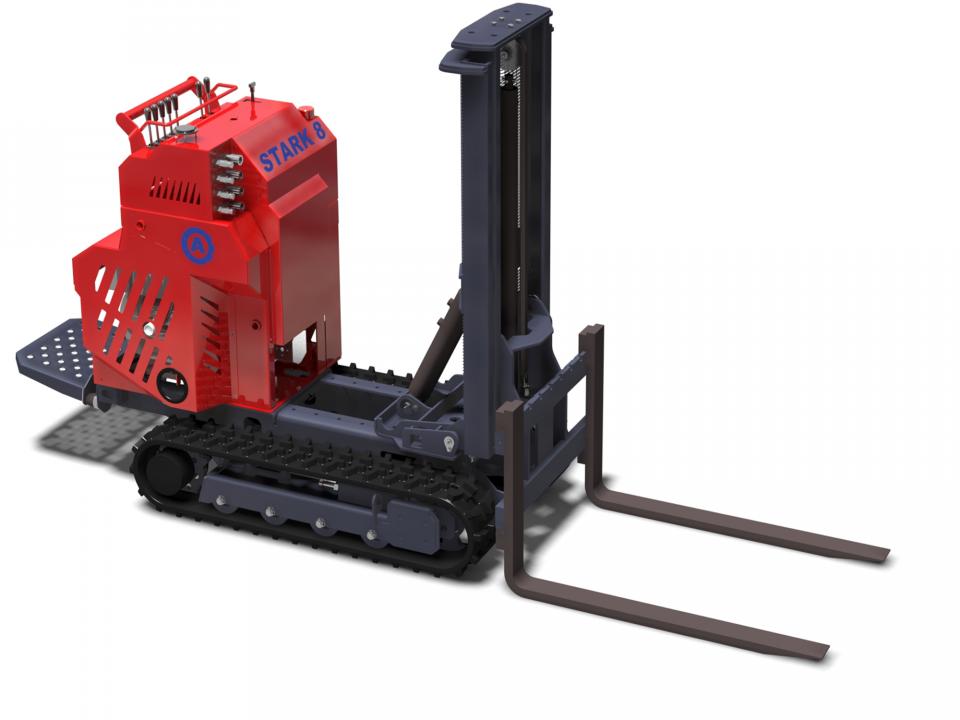

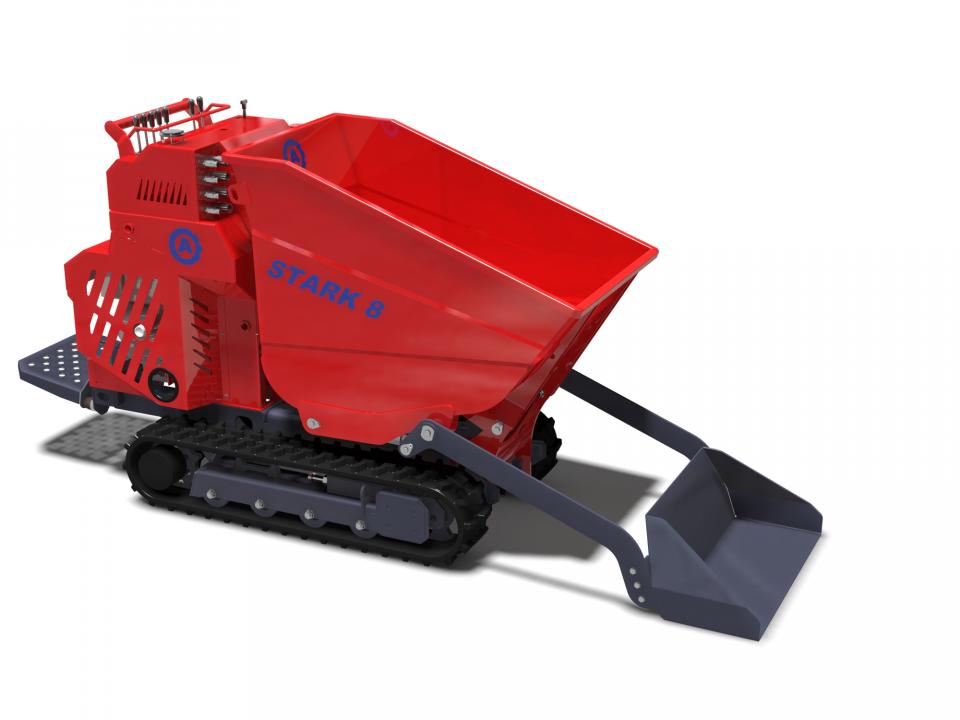

- Many different outfitting options and all-encompassing versatility
- Design meant to be functional through use of long-lasting, quality materials
- Strength and reliability
- Adaptability to any type of load or conditions
- Manually adjustable two-speed translation and foldable footboard for the operator working on the machine
Stark 8/10 B
Engine
Model | Honda GX390 Petrol |
Power (kW-HP) | 8,7-11,7 @3600rpm |
Fuel consumption(litres/hr) | 3,5 @3600rpm |
Hydraulic System
Distributor | Mechanical lever |
N. translation levers | 2 |
Hydraulic Motor
Max circuit pressure (bar) | 210 |
Track
Tensioning | Screw |
Features
Load (Kg) | 800 |
Speed 1/2 (Km/h) | 1,7-3,2 |
Machine weight (Kg) | 500 |
Operator position | On board |
Longitudinal slope | 20° |
Axle Track
Type | Fixed / expandable |
Stark 8/20 B
Engine
Model | Honda GX630 Petrol |
Power (kW-HP) | 15,5-20,8 @3600rpm |
Fuel consumption(litres/hr) | 6 @3600rpm |
Hydraulic System
Distributor | Mechanical lever |
N. translation levers | 2 |
Hydraulic Motor
Max circuit pressure (bar) | 210 |
Track
Tensioning | Screw |
Features
Load (Kg) | 500 |
Speed 1/2 (Km/h) | 1,7-3,2 |
Machine weight (Kg) | 500 |
Operator position | On board |
Longitudinal slope | 20° |
Axle Track
Type | fixed/expandable |
