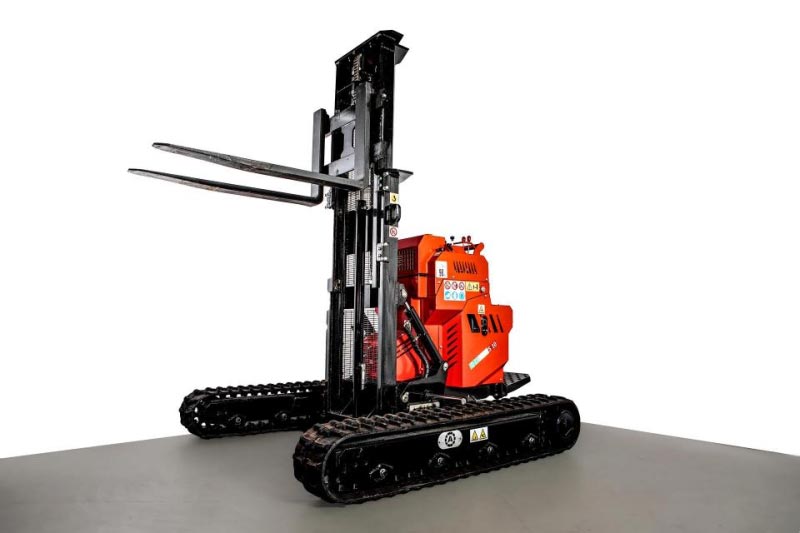

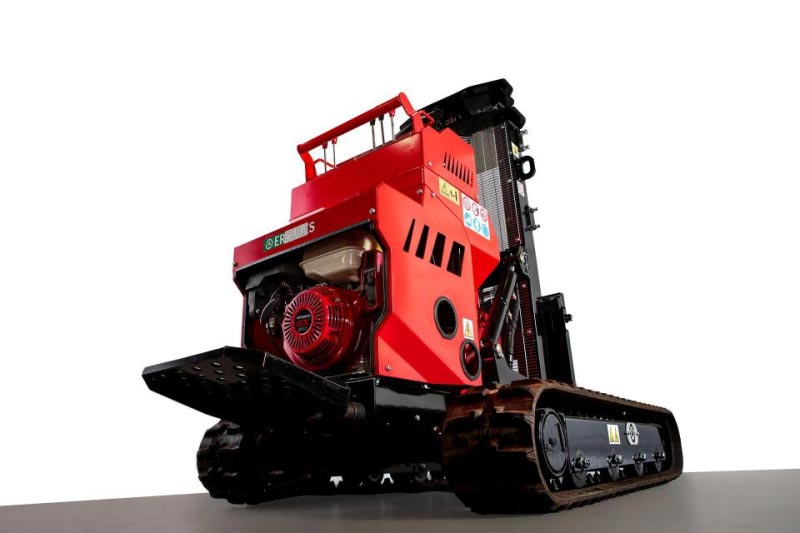

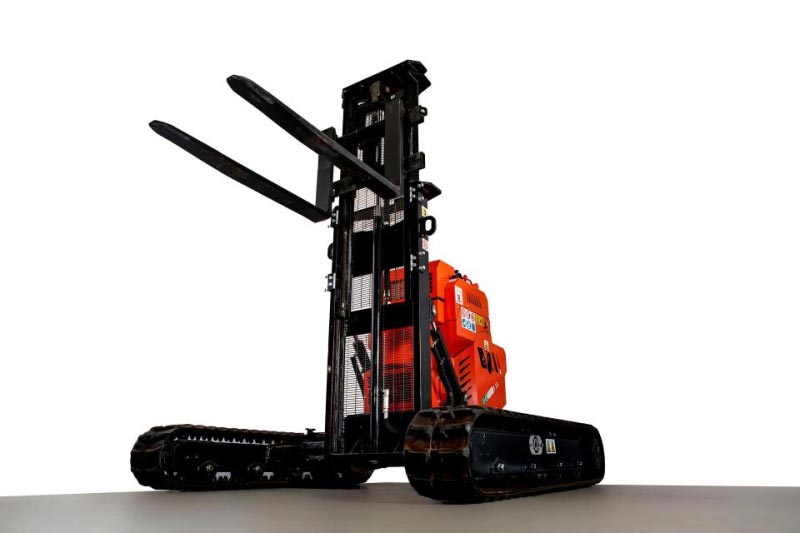

Ercules 13
It's the Perfect Machinery!
Equipped with a max load of 1300 kg and extendable carriage, Ercules 13 is perfect to transport any type of material. Thanks to rubber reinforced track, Ercules 13 is able to move in conditions of extreme difficulty, ensuring a perfect adhesion.
Downloads
Engine
| Model | Honda GX630 Petrol 688cm3 |
| Power (kW-HP) | 15.5-20.8 @3600rpm |
| Ignition | Electric |
| Fuel consumption (l/h) | 6 @3600rpm |
Hydraulic System
| Distributor | mechanical lever |
| N° translation levers | 2 |
| N° standard system levers | 3 |
Gearbox
| Type | Bonfiglioli 700-2C2 K |
| N° speeds | 2 |
| Max circuit pressure (bar) | 210 |
Track
| Tensioning | Grease |
Forks
| Dimensions (mm) | 100 x 35 x 1100 |
| Type | FEM3 |
Features
| Load (Kg) | 1300 |
| Speed 1/2(Km/h) | 1,7/3,2 |
| Machine weight (Kg) * | 1200 |
| Operator position | On board |
| Longitudinal slope | 20° |
| Transverse slope | 0° |
* Note: Dimensions and machine weight depend on the requested configurationAll data are to be considered not binding and may undergo changes by the manufacturer
Optional
| White tracks | Yes |
| Fork sideshifter | Configuration to be evaluated with technical department |
| Timer | Yes |
| Telescopic forks (opened/closed) mm | Configuration to be evaluated with technical department |
| Towing hook | Yes |
| Additional hydraulic systems | Configuration to be evaluated with technical department |
