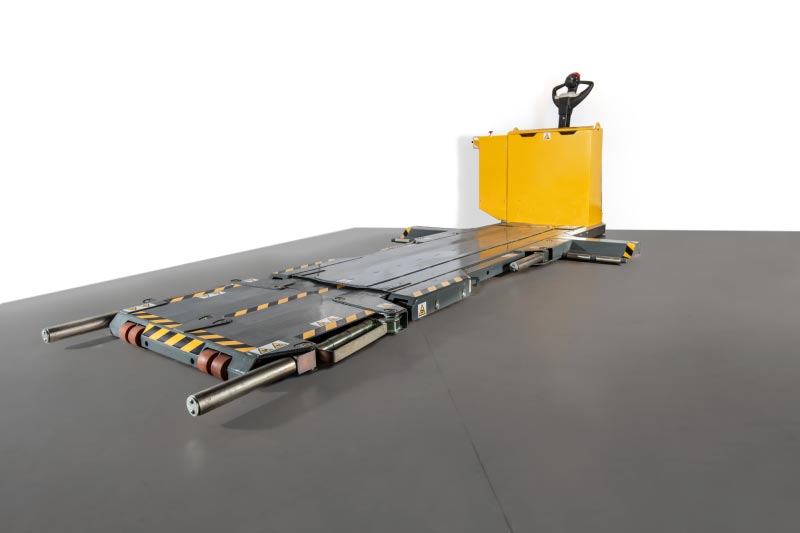

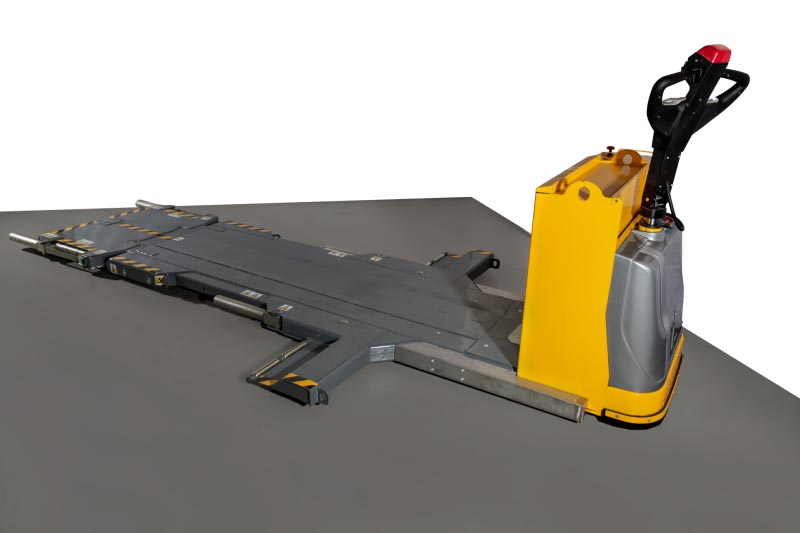

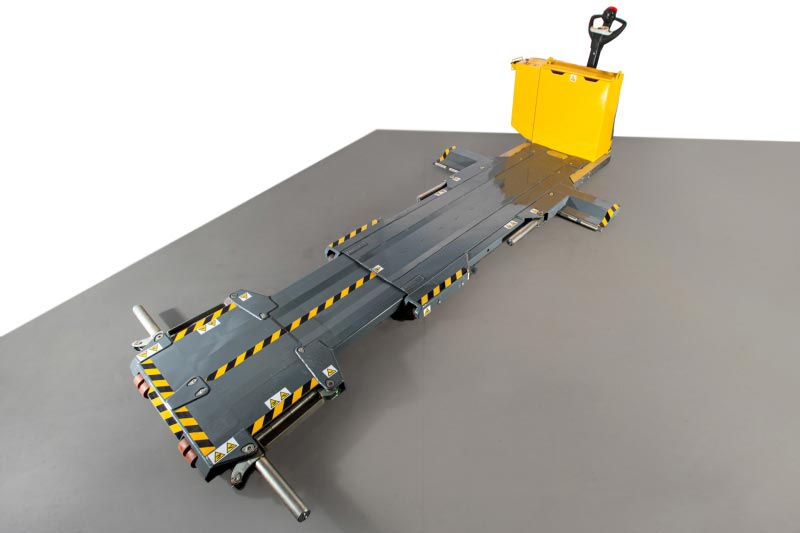

CarMover XL
For moving vehicles up to 2.5 tons with a 3-m wheelbase
CarMover is a must-have tool for moving vehicles up to 2.5 tons with a 3-m wheelbase over flat surfaces like asphalt parking lots, warehouses, and body shops with cement or resin floors.
CarMover encapsulates technological innovation designed to allow for vehicle movement. Thanks to innovative technical solutions, this one-of-a-kind tool makes it possible to move vehicles that are stuck without having to tow them, but rather lifting them.
By taking advantage of a chassis that adjusts to the vehicle’s size and using the principle of movement through lifting, CarMover is suitable for vehicles that are stuck or for those who don’t have much space for storage and would like to move a car without starting it or getting into it.

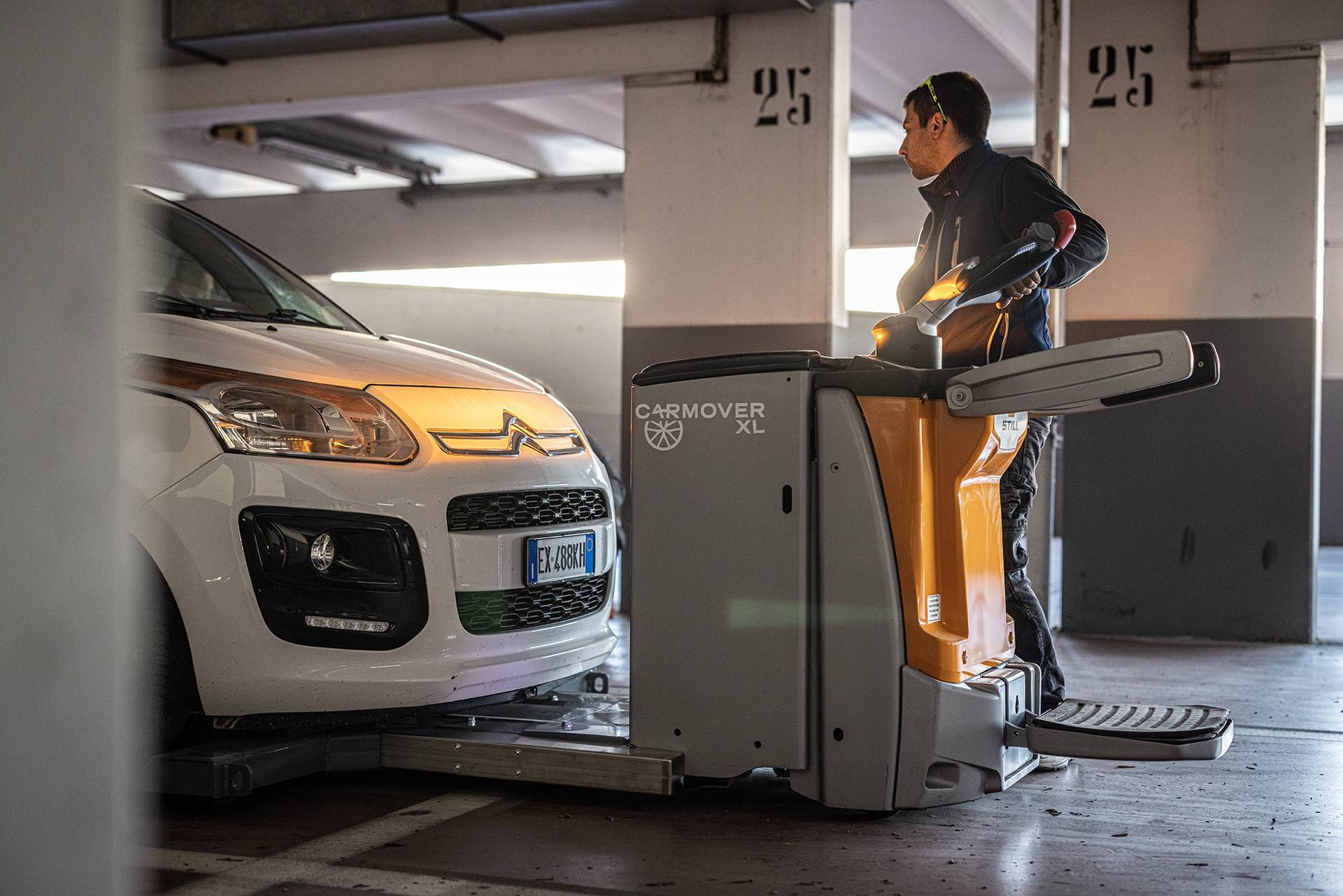

Thanks to its electric motor, CarMover is perfect when you have to work in tight spaces and facilitates operations without requiring any effort of the operator.
Why choose CarMover:
- Because it gets all light vehicles weighing up to 2.5 tons and a 3-m forward movement;
- Because it lets you park one vehicle closer to another (closer than a driver);
- It can cross small obstacles (door or portal thresholds);
- Because it does not release exhaust and you can use it in a body shop or warehouse;
- Because it’s really easy to use.
CarMover Operation Principle

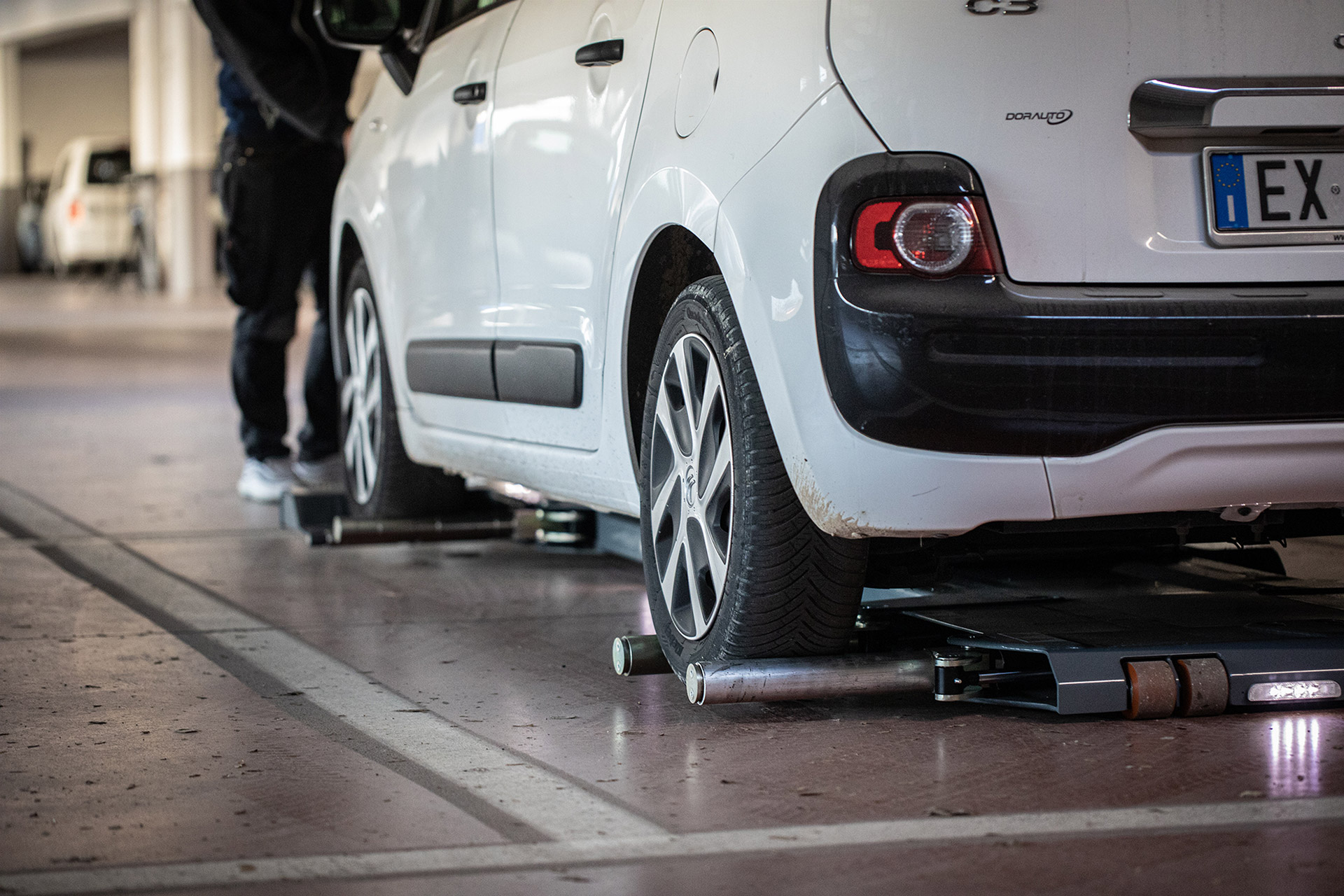

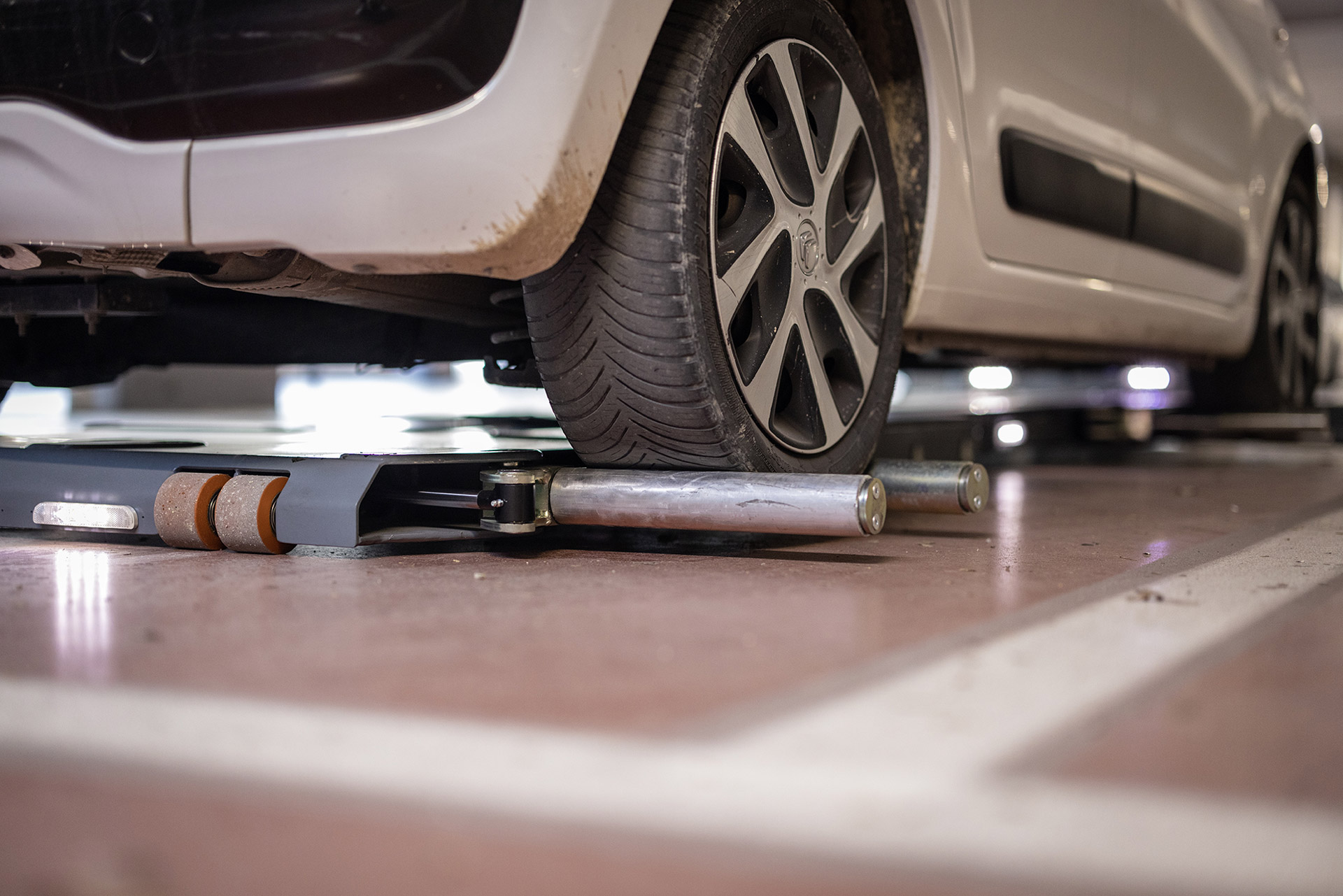

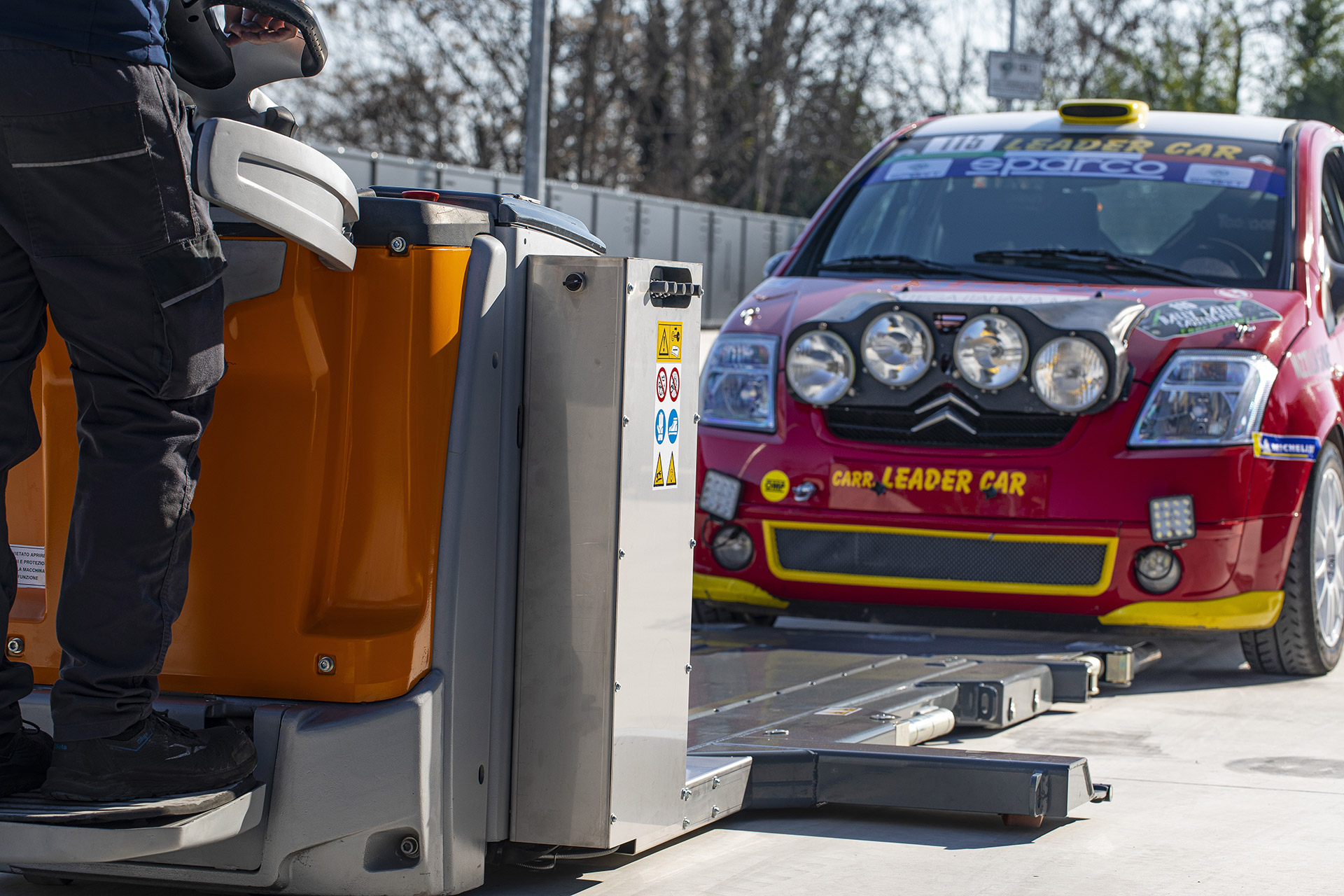

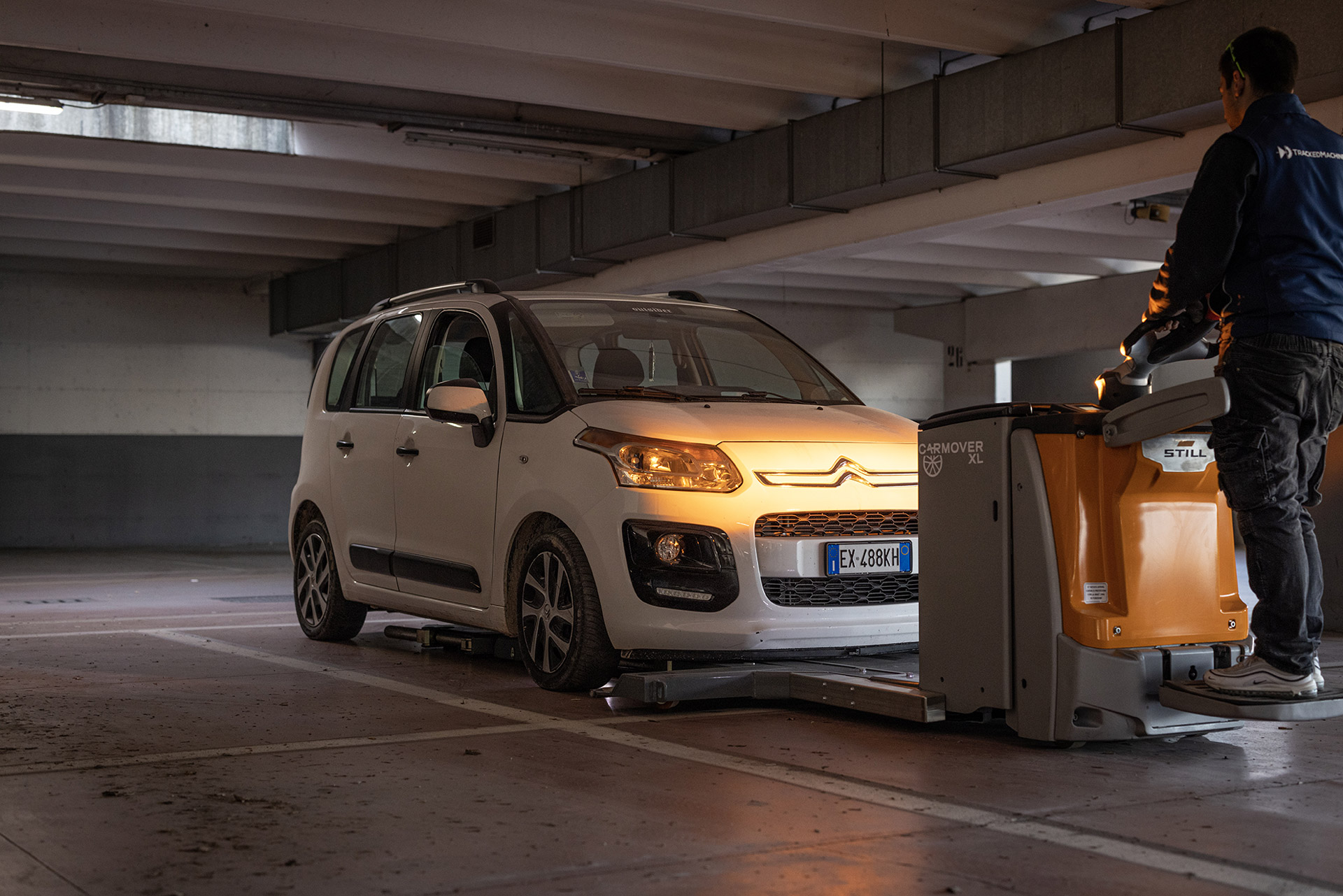

The principle of operation requires that the carriage slide below the vehicle to block the vehicle’s front or back wheels depending on the grasp with the hydraulic locking mechanism to then adjust the carriage so it positions itself under the next set of wheels.

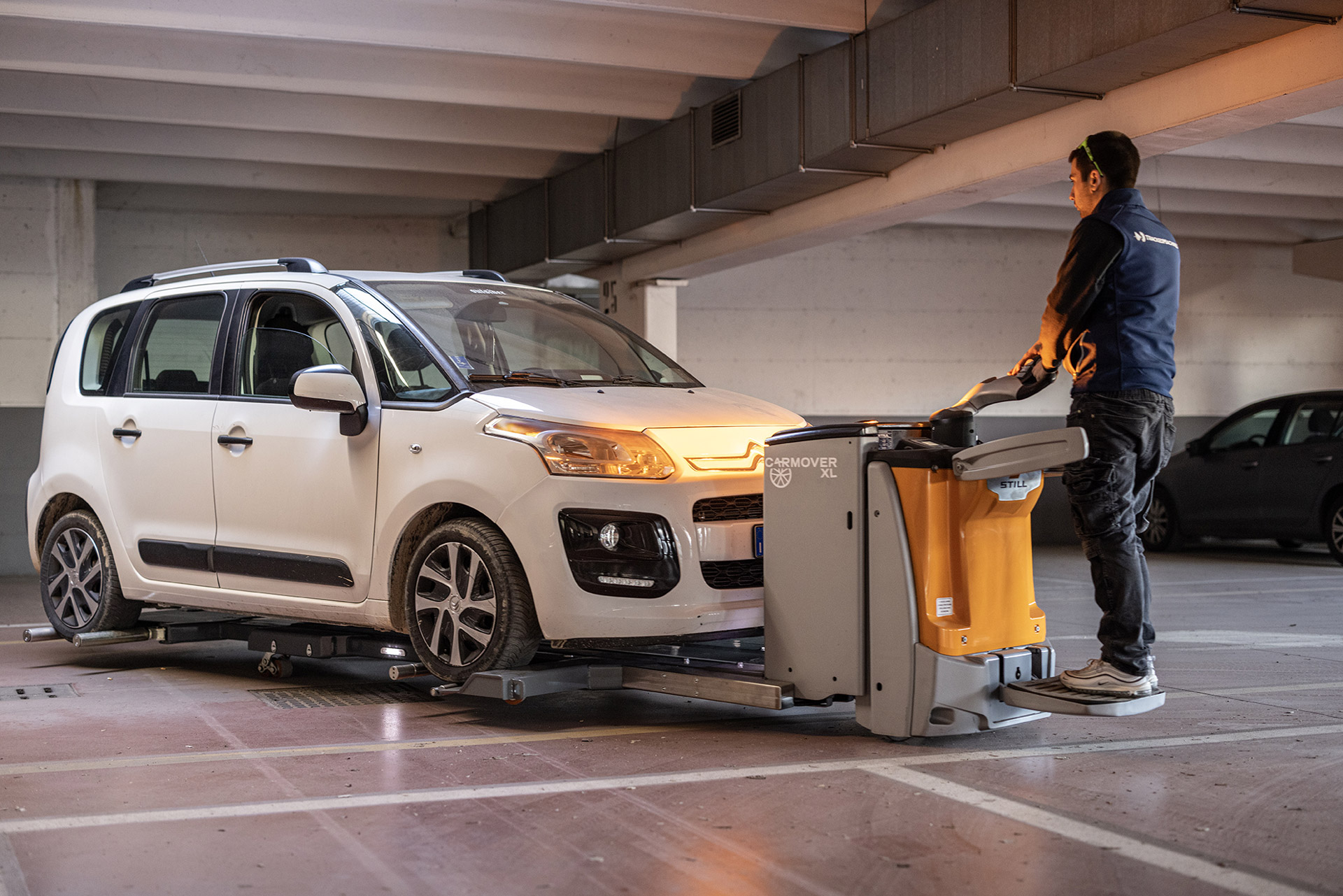

When the vehicle is completely positioned under the car, a command is activated that lets you lift the vehicle 10 centimeters so that the wheels don’t touch the ground.

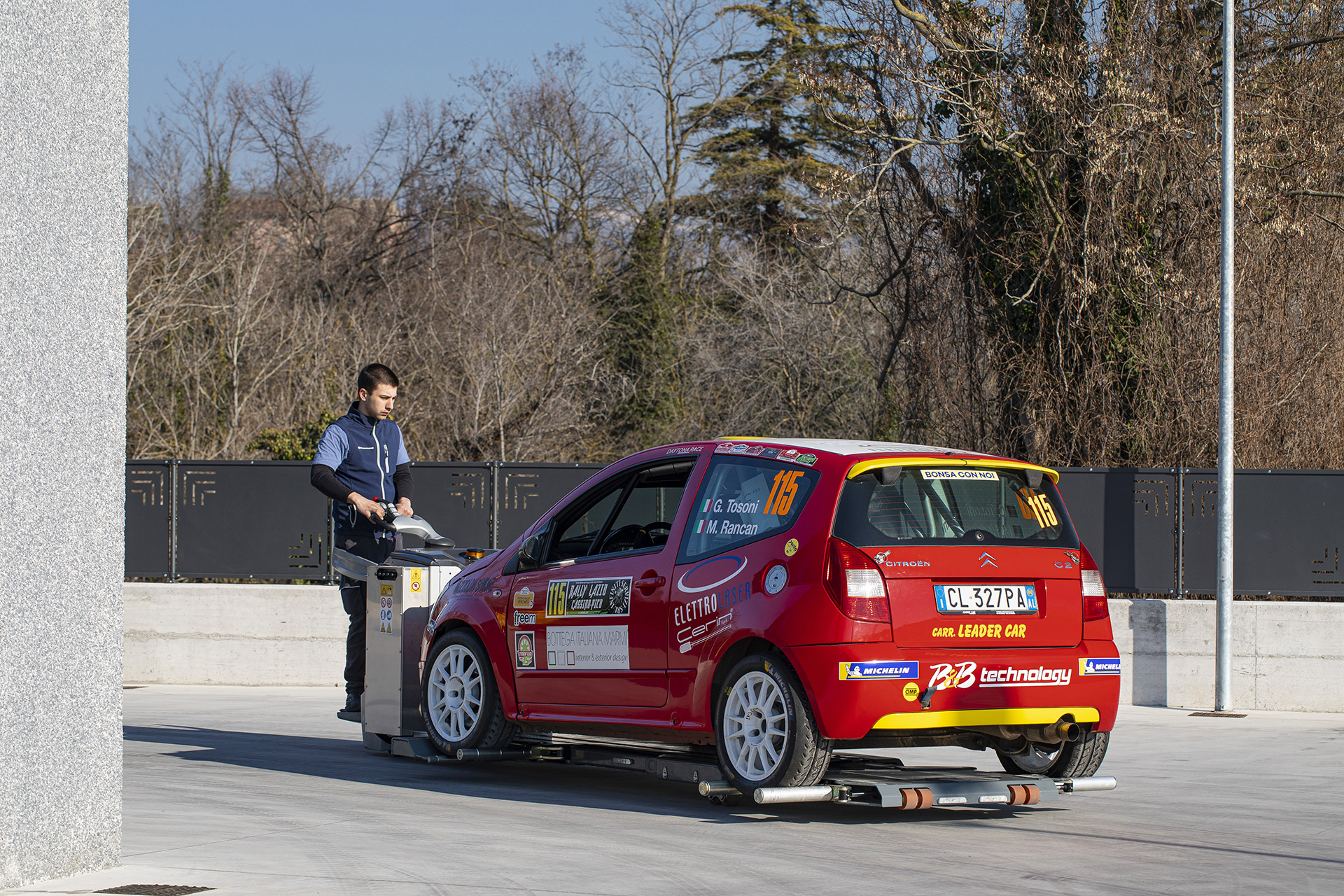

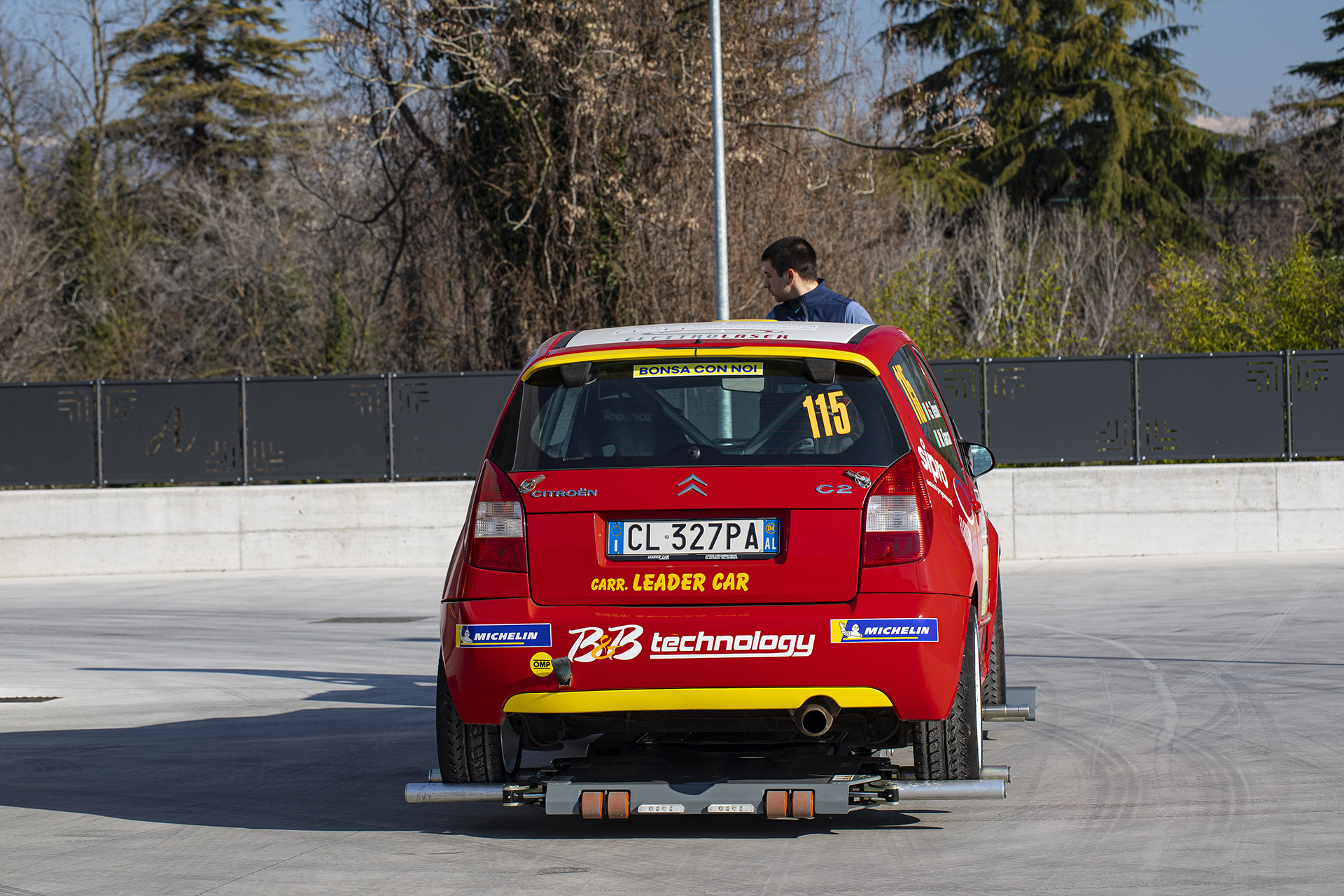

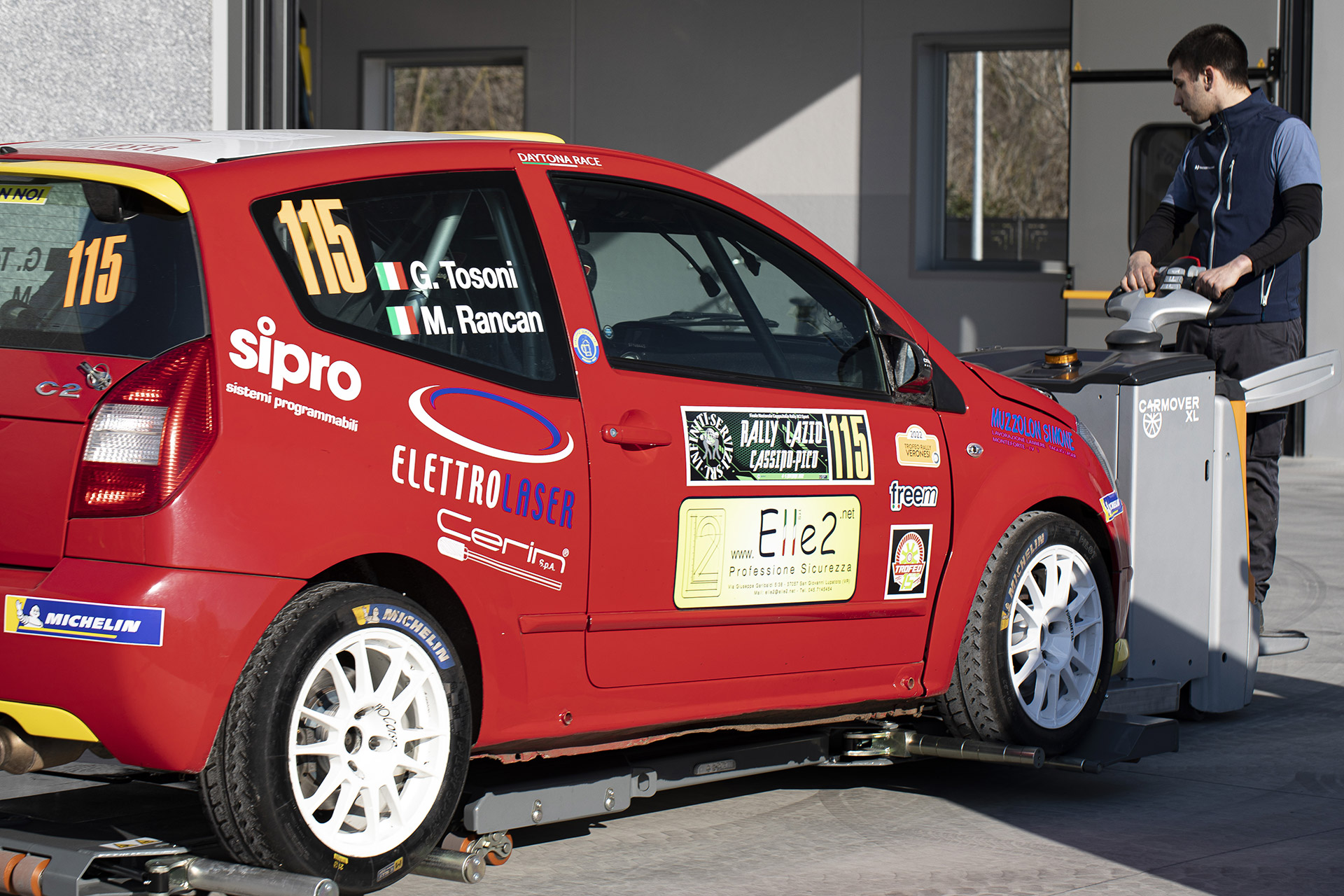

The vehicle lets you move forward, back, and go around curves effortlessly.
CarMover can remove stuck vehicles with four blocked wheels and adapts to all vehicle sizes from the Renault Twingo to the Audi Q7.
Technical Data
| METRIC SYSTEM | IMPERIAL SYSTEM | |
| PERFORMANCE | ||
| Weight | 600+550 Kg | 1322,77 + 1212,54 lbs |
| Load capacity | 2500 kg | 5511,55 lbs |
| Vehicle min-max wheelbase | 210-300 cm | 82,58 - 118,11 inches |
| Min-max wheel diameter | 500-750 mm | 19,68 - 29,53 inches |
| Max vehicle width | 1800 mm | 70,87 inches |
| Speed without load with operator on board | 5,5 km/h | 3,42 mph |
| Speed with platform raised | 3 Km/h | 1,86 mph |
| Turning radius | 3m | 9,84 feet |
| FEATURES | ||
| Traction | Electric | Electric |
| Operator position | On board - non on board | On board - non on board |
| BATTERIES | ||
| Voltage | 24 V | 24 V |
| Capacity | 240 Ah | 240 Ah |
| Charging time | min 6h - max 8h | min 6h - max 8h |
| TRACTION | ||
| Type | Electric | Electric |
| Power | 1,7 Kw | 2,28 Hp |
| Traction wheel diameter | 250×80 mm | 9,84x3,15 inches |
| Wheels material | Polyurethane | Polyurethane |
| Brake | Electromagnetic | Electromagnetic |
| MOVEMENT | ||
| Type | Hydraulic levers distributors | Hydraulic levers distributors |
| Quantity | 5 | 5 |
| HYDRAULIC UNIT | ||
| Max consumption | 5 litre/min | 1,32 gal/min |
| Oil tank volume | 6 litre | 1,59 gal |
